| Specifications | ||||
| Output Voltage | Range | Resolution | Test Current | Accuracy |
| 250V (0~20%) | 0~20MΩ | 0.01ΜΩ | 1mA | ±(3%+5) |
| 20~200MΩ | 0.1ΜΩ | @250k | ||
| 200~250MΩ | 1ΜΩ | |||
| 500V (0~20%) | 0~20MΩ | 0.01ΜΩ | 1mA | ±(3%+5) |
| 20~200MΩ | 0.1ΜΩ | @500k | ||
| 200~500MΩ | 1ΜΩ | |||
| 1000V (0~20%) | 0~20MΩ | 0.01ΜΩ | 1mA | ±(3%+5) |
| 20~200MΩ | 0.1ΜΩ | @1000k | ||
| 200~1000MΩ | 1ΜΩ | |||
| 2500V (0~20%) | 0~2000MΩ | 1ΜΩ | 3mA | ±(3%+5) |
| 2000MΩ~20GΩ | 0.01GΩ | @2500k | ±(5%+20) | |
| 20GΩ~100GΩ | 0.1GΩ | ±(10%+20) | ||
| DC Voltage Test | 200V/1000V | 0.1V/1V | ±(0.5%+5) | |
| AC Voltage Test | 200V/750V (50~60Hz) | 0.1V/1V | ±(1.5%+5) | |
| Resistance | 20Ω | 0.01Ω | 1mA | ±(1%+5) |
| 200Ω | 0.1Ω | ±(1%+5) | ||

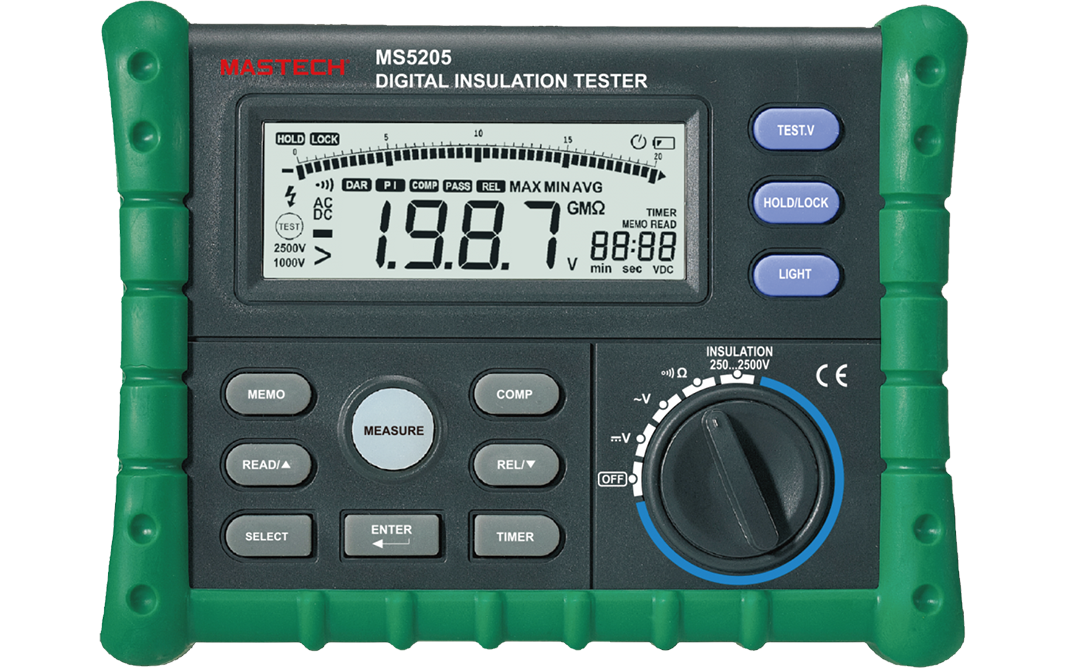

Megger Insulation Tester 1000v Mastech
In Stock
Highlights:
● Auto Power Off
● LOCK
● MIN/MAX/AVG
● Compare function
● Timer function
● Storage function
● DAR
● PASS
● Backlight
● Relative Measurement
● Data Hold
● Low Battery Display
